25W 2024 COB LED MLT-CL-B2024G01-12S08P025DXX
25W 2024 COB LED MLT-CL-B2024G01-12S08P025DXX
This high CRI 25W 2024 COB LED module is made of 96PCS high bright 22mil*35mil chips.
COB LEDs are basically multiple LED chips packaged directly to a substrate by LED components supplier Moonlight to form a single LED module. The multiple chips take up less space and the highest potential of the LED chips can be obtained. When the COB LED package is energized, it appears more like a lighting panel.
With the advanced knowledge and packaging technology for years, Moonlight COB LED has excellent reliability and high‑flux, multi‑die chips in a smaller, easy‑to‑use platform. With Moonlight LED lighting‑class reliability, Moonlight LED array’s small, uniform emitting surface enables both directional and non‑directional lighting with new levels of flux and efficacy. Moonlight COB LED series covers a wide range of luminous flux from 3W to 300W. The element arrangement of LED package is capable of utilizing light more effectively and higher performance. Due to success of reducing the thermal resistance significantly, Moonlight COB LED creates more options to match luminaire’s products design with perfect performance, cost effective, high lumen density, etc.
With the same size of lead frame, there is 12W 2024 COB LED.
Data Sheet
Test Report
Feature
- Mirror aluminum lead frame.
- 2024 COB LED series.
- Excellent color reproduction.
- Available in a broad range of CCTs from 2600K to 6700K.
- Wide range of luminous flux and high efficacy.
- RoHS complaint.
- Low thermal resistance.
- Environment-friendly.
- Long life span and high reliability.

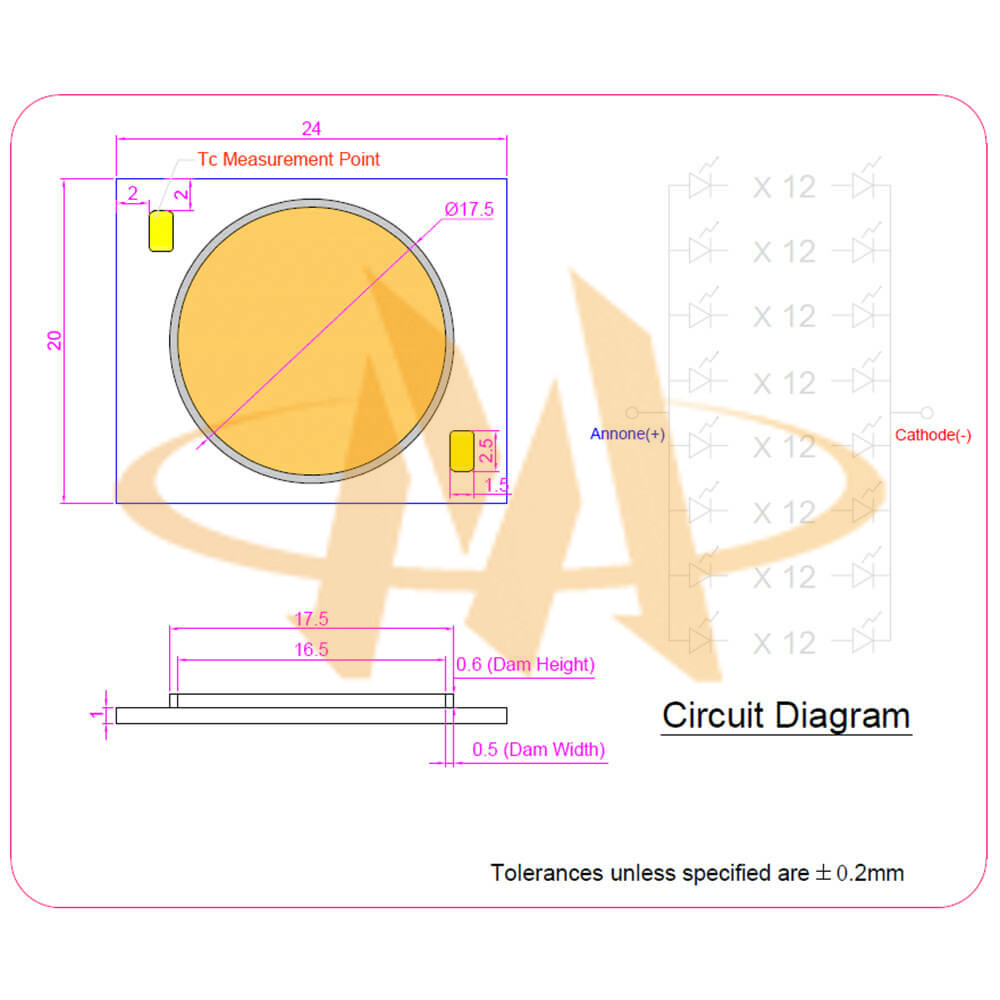

Mechanical Dimensions
Internal Circuit
12S 08P
Parameter
| Model No. | 25W 2024 COB LED MLT-CL-B2024G01-12S08P025DXX |
| Package Structure | Aluminum Base Chip on Board |
| Chip Size | 22mil*35mil |
| Chip Quantity | 96PCS |
| Packaging Dimension | 20mm*24mm*1.5mm |
| Reference Assembly | M3 screws and connector |
| Typical Forward Voltage | 34V |
| DC Forward Current | 700mA |
| Typical Power | 25W |
| Typical Luminous Flux | 3600lm-3850lm |
| CRI | >80Ra |
| CCT Range | 2600K-6700K |
| Emitting Color | Warm White/Neutral White/Cool White |
| Viewing angle | 120° |
| Operating Temperature | -30℃～+100℃ |
| Storage Temperature | -40℃～+100℃ |
Application
Moonlight advanced packaging technology and spectrum tuning technology creates emphasis on the appearance of lighting. It is suitable for commercial lighting especially for luminaires with a narrow beam angle such as LED floodlight, LED high bay, LED street light, etc.
