COB LED MLT-CL-C5652G01-09S08P072DXX
COB LED MLT-CL-C5652G01-09S08P072DXX
COB LEDs are basically multiple LED chips packaged directly to a substrate by Moonlight to form a single LED module. The multiple chips take up less space and the highest potential of the LED chips can be obtained. When the COB LED package is energized, it appears more like a lighting panel.
With the advanced knowledge and packaging technology for years, Moonlight COB LED has excellent reliability and high‑flux, multi‑die chips in a smaller, easy‑to‑use platform. With Moonlight LED lighting‑class reliability, Moonlight LED array’s small, uniform emitting surface enables both directional and non‑directional lighting with new levels of flux and efficacy. Moonlight COB LED series covers a wide range of luminous flux from 3W to 300W. The element arrangement of LED package is capable of utilizing light more effectively and higher performance. Due to success of reducing the thermal resistance significantly, Moonlight COB LED creates more options to match luminaire’s products design with perfect performance, cost effective, high lumen density, etc.
Feature
- Mirror aluminum lead frame.
- 5652 COB LED series.
- Excellent color reproduction.
- Available in a broad range of CCTs from 2600K to 6700K.
- Wide range of luminous flux and high efficacy.
- RoHS complaint.
- Low thermal resistance.
- Environment-friendly.
- Long life span and high reliability.

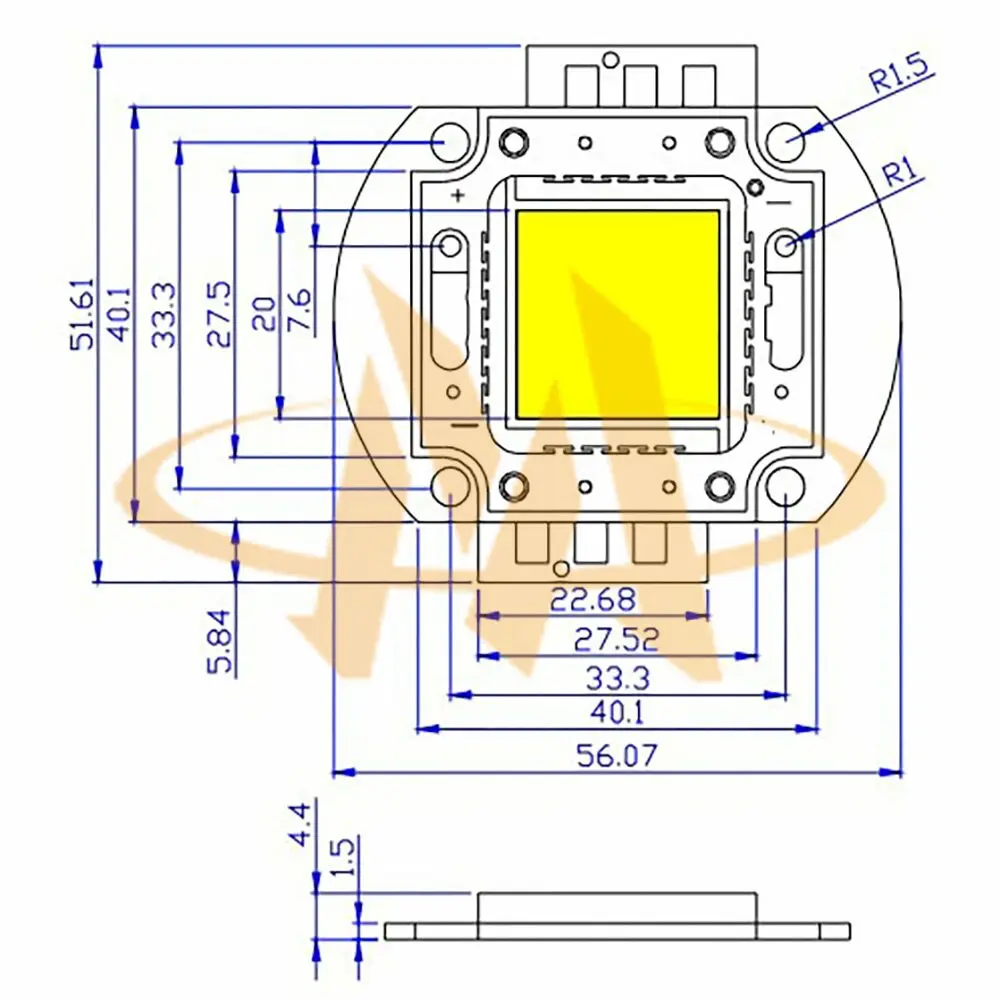

Mechanical Dimensions
Internal Circuit
09S 08P
Parameter
| Model No. | COB LED MLT-CL-C5652G01-09S08P072DXX |
| Package Structure | Copper Base Chip on Board |
| Packaging Dimension | 56mm*52mm*4.4mm |
| Reference Assembly | M3 screws and connector |
| Die Count in Series | 09 |
| Die Count in Parallels | 08 |
| Typical Forward Voltage | 30V |
| DC Forward Current | 2800mA |
| Typical Power | 72W |
| Typical Luminous Flux | 7200lm-8000lm |
| CRI | >80Ra |
| CCT Range | 2600K-6700K |
| Emitting Color | Warm White/Neutral White/Cool White |
| Viewing angle | 120° |
| Operating Temperature | -30℃～+60℃ |
| Storage Temperature | -40℃～+80℃ |
Application
Moonlight advanced packaging technology and spectrum tuning technology creates emphasis on the appearance of lighting. It is suitable for the LED light engine of LED floodlight, LED low bay light, LED wall pack light, LED barn light, LED street light, etc.
